Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | Calibration Certificate |
| Model Number: | SL-BST016 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 35 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2 pcs/ month |
| SKYLINE: | Irregular Surface Test Equipment | Test Speed: | 5±0.1km/h |
|---|---|---|---|
| Number Of Samples: | 1 / Time | Test Channel Width: | 82cm |
| Dimension: | 168×120×180cm LxWxH | Weight: | 450kg |
| Standard: | EN1888-2018 | Power Supply: | Three-phase Five-wire 380V |
| Highlight: | physical testing equipment,brake testing equipment |
||

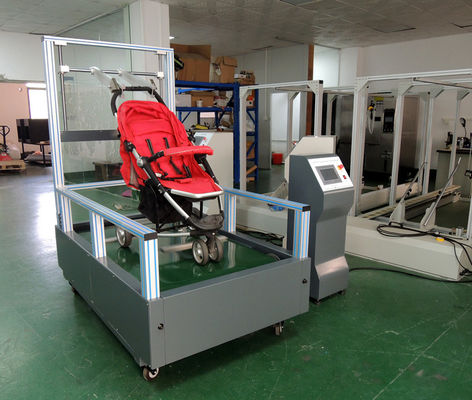

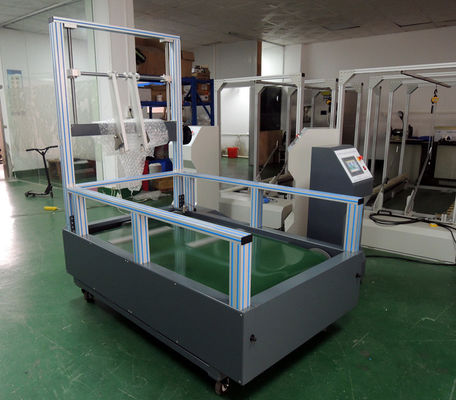

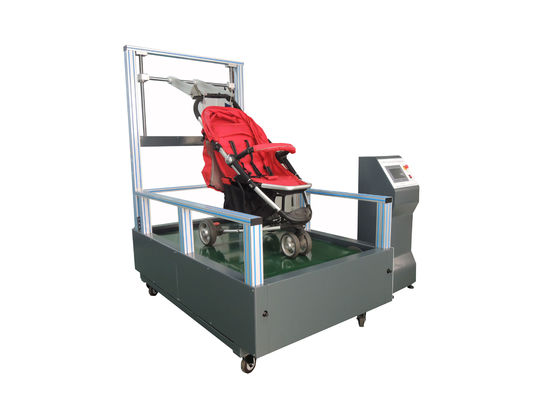

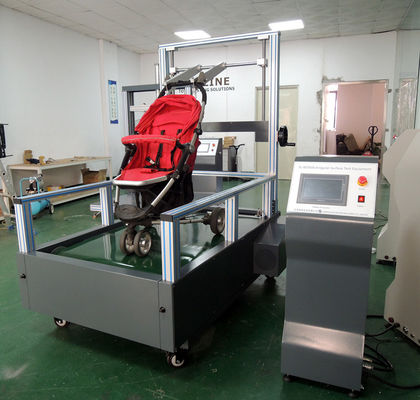

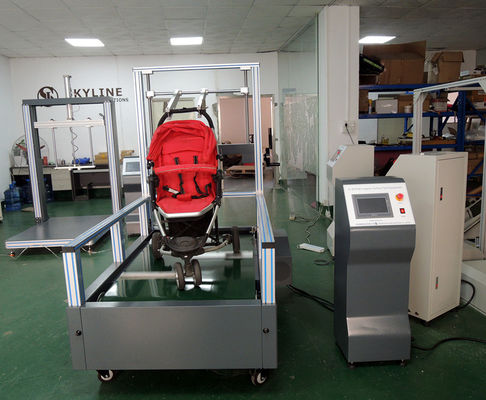

EN1888-2018 Irregular Surface Test Equipment
Use
This machine is suitable for dynamic endurance test of the bottom wheel and the car body when the push baby stroller simulates road conditions.
Principle
This machine simulates the running state of a stroller. Fix the sample with a certain load on the test bench, set the number of tests required, and adjust the speed required for the test. After the test, check whether the structure and performance of the sample are intact.
According to the standard
This tester is made with reference to EN1888: 2012 section 5.10.
Specifications
| Sample | Finished stroller |
| Number of samples | 1 / time |
| Test speed | 5±0.1km/h |
| Obstacle block | A type and B type |
| Test channel width | 82cm |
| Volume (WxDxH) | Host:168×120×180cm Control box:35×35×110cm |
| Weight (approx.) | ≈450Kg |
| Power supply | Three-phase five-wire 380V |
Please review video of the Irregular Surface Test Equipment operation as below link:
https://youtu.be/z2lbt_0fxVA
