Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | Calibration Certificate |
| Model Number: | SL-SE02U |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negoitable |
| Packaging Details: | plywood case |
| Delivery Time: | 5 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 1 pcs/ month |
| SKYLINE: | Universal Spring Impact Test Hammer | Standards: | IEC60068-2-75 IEC884 And UL1244 |
|---|---|---|---|
| Weight: | 1250g | Length: | 211mm |
| Hammer Radius: | 10mm | OD: | 50mm |
| Highlight: | 50mm Electronic Testing Equipment,211mm Electronic Testing Equipment,SKYLINE spring impact hammer |
||

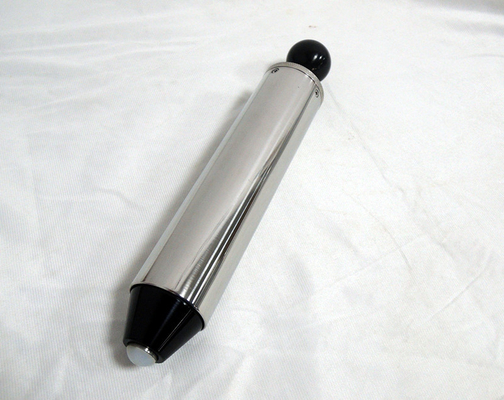

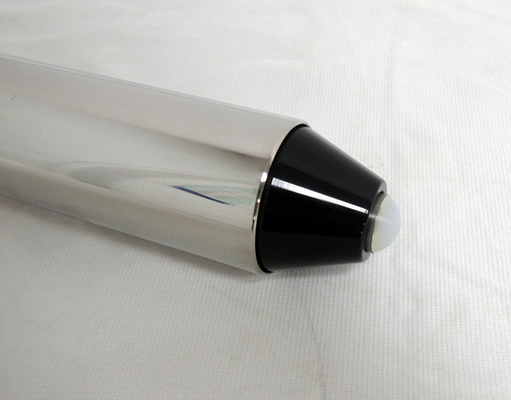

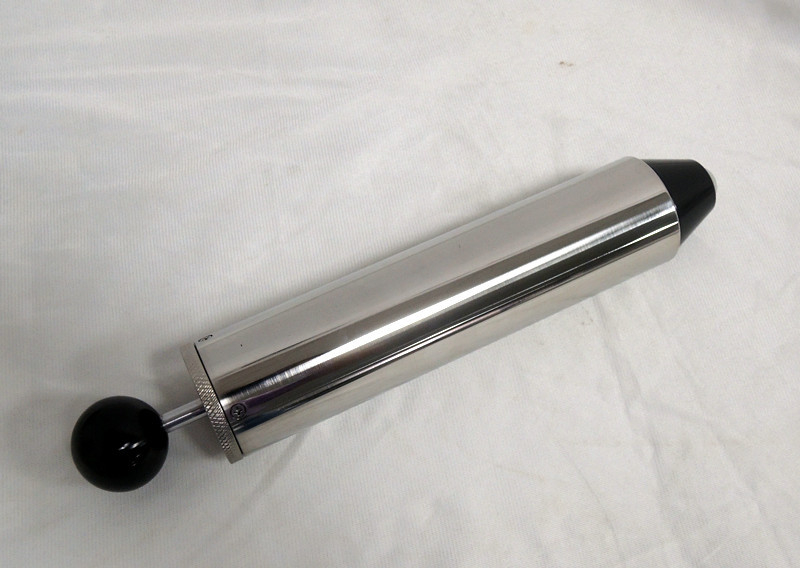

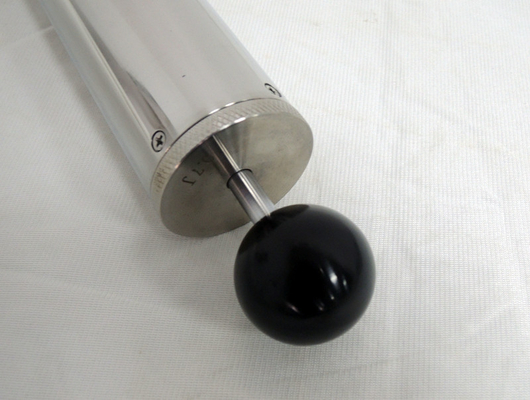

Universal Spring Impact Test Hammer for House Hold Products
Introductions
This spring impact hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.
Standards
It is strictly designed according to IEC60068-2-75, but not limited to these standards.
Applications
This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.
After applying the impact with the hammer, the products is examined with accessibility probes to determine access to shock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.
|
Type |
Impact Energy(J)
|
Tolerance Mistake
|
|
Spring Impact Energy
|
0.14
|
0.014
|
|
Spring Impact Energy
|
0.20
|
0.02
|
|
Spring Impact Energy
|
0.35
|
0.03
|
|
Spring Impact Energy
|
0.50
|
0.04
|
|
Spring Impact Energy
|
0.70
|
0.05
|
|
Spring Impact Energy
|
1.00
|
0.05
|
|
Spring Impact Energy
|
2.00
|
0.10
|
|
Universal Energy
|
0.14
|
1.00
|
Technical parameters
| length | 211mm |
| weight | 1250g |
| OD | 50 mm |
| Hammer Weight | 60g |
| Hammer radius | 10mm |
| Impact Components | including the hit ball handle the hammer,weight 250g, hammer head is made from white polyethylene imine first |
| The release force of impact | <10N |
What is spring hammer test?
