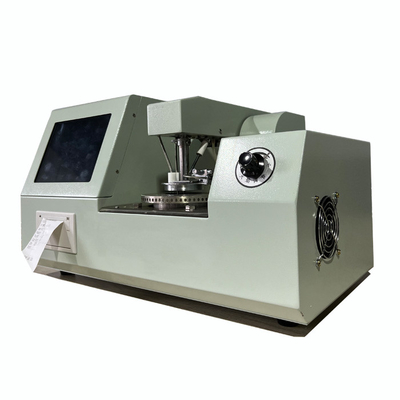

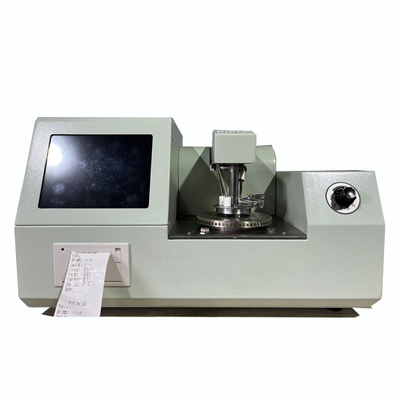

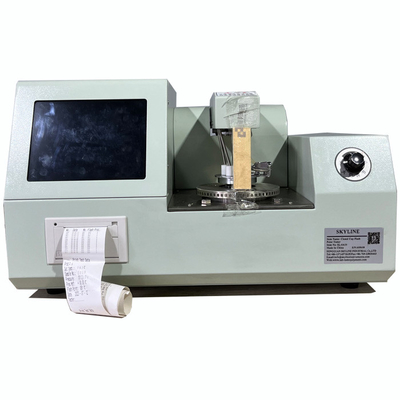

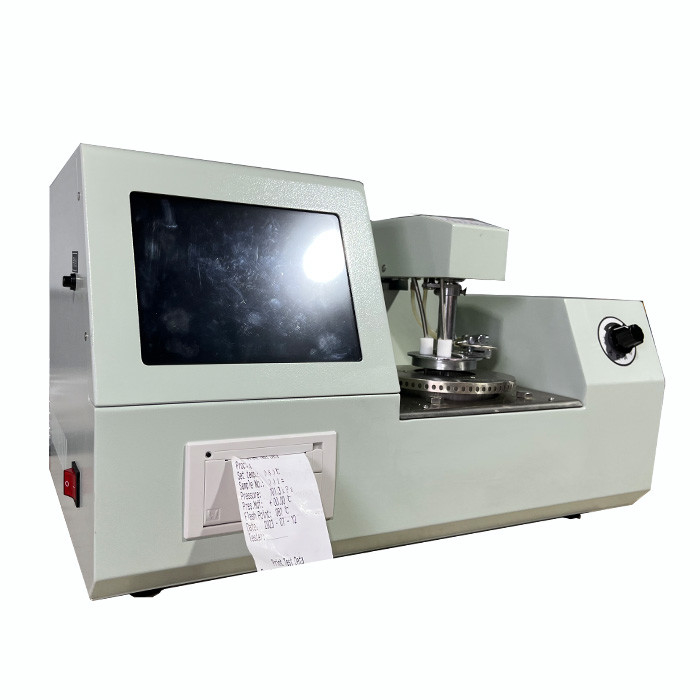

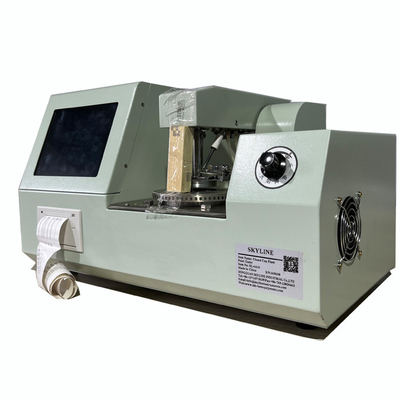

ASTM D93 Pensky-Martens Flash Point Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE , Calibration Certificate
Model Number:	SL-OA10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiated
Packaging Details:	plywood case
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 unit / month

Contact Now

Detailed Product Description

SKYLINE:	Closed Cup Flash Point Tester	Standard:	ASTM D93
Oil Cup Inner Diameter:	50.7mm~50.8mm.	Oil Cup Depth:	55.7mm~56.0mm
The Scribed Line Depth Of Capacity Of Testing Oil:	33.9mm~34.3mm.	Capacity Of Testing Oil:	About 70ml
Thermometers:	Scale 20°C~150°C, Division 1°C.	Keywords:	Oil Analysis Equipment
Name:	Closed Cup Flash Point Tester	Dimension:	410X2600X300mm
Highlight:	oil analysis lab equipment , oil analysis equipment

ASTM D93 Flash Point Oil Analysis Equipment Closed Cup Flash Point Tester

Name: ASTM D93 Pensky-Martens Flash Point Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-OA10
Price: negotiable USD
Availability: InStock

ASTM D93 Pensky-Martens Flash Point Tester 0

Description Of Closed Cup Flash Point Tester

ASTM D93 closed automatic flash point determination instrument, mainly used

for determination of petroleum products closed cup flash point value, the instrument

uses the ARM microprocessor technology, color LCD, resistive touch screen

technology, Chinese menu, human-computer interaction more convenient; instrument

with power failure memory function; instrument with automatic ignition, display, and

print results, automatic cooling function lock; instrument with igniter external

brightness adjustment function equipment with accurate measurement, good

repeatability, stable and reliable performance, simple operation of the advantages.

Widely used in electric power, petroleum, chemical industry, commodity inspection,

research and other departments, in accordance with D93 GB/T, 261-2008 ASTM

standard method requirements.

Features

1. This instrument is designed as per ASTM D93.

2. The heating power is continuously and sleeplessly adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.

3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.

4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.

Specifications

Display	color LCD display touch screen
Measuring range	room temperature 40~350° C
Temperature detection	platinum resistance
Accuracy	≥104°C±2°C ≤104°C±1°C
Ignition mode	electric ignition
Cooling method	forced air cooling
Self-test function	test head, igniter, fan, etc
Standard	in accordance with ASTM D93 GB261-83 ISO-2719
Power source	AC 220V ± 11V, 50Hz ± 2.5HZ
Power	≤350VA
Ambient temperature	10 ° C ~ 35 ° C
Weight	15KG
Use ambient humidity	≤ 85%
Printer	thermal printer
Information storage	1000 analysis results can be stored
Repeat	> 110 - 2 Deg. C = 110 - 1 Deg. C
Temperature test	platinum resistance
