Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Model Number: | SL-OA15 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 unit / month |
| Measuring Range: | 35 ℃～ - 70 ℃ | Measurement Accuracy: | ±1℃ |
|---|---|---|---|
| Resolution: | 0.1℃ | Screen: | Color LCD Touch Screen Chinese Display |
| Number Of Samples: | 1 | Ambient Temperature: | 5℃～45℃ |
| Dimensions: | 500 Mm × 490 Mm × 660mm | Weight: | 55kg |
| Keywords: | Oil Analysis Testing Equipment | Name: | Automatic Pour Point Tester |
| Brand: | SKYLINE | Condensation Point Range: | Light Oil Within 5 ℃~- 70 ℃ |
| Power Consumption: | ≤ 600W | ||
| Highlight: | oil analysis lab equipment,oil analysis equipment |
||

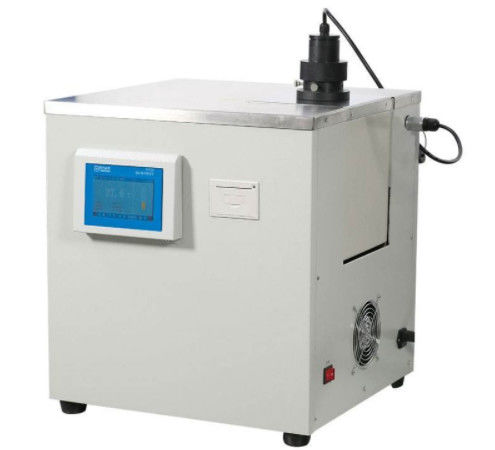

The automatic pour point tester is suitable for measuring the pour point of lubricating oil and dark petroleum products, and there is no limit to the viscosity. It can be used in electric power, petroleum, chemical, commodity inspection and scientific research departments.
Standard:GB/510,ASTM D2386,GB/T3535,ASTM D97
·LCD display, touch control, easy to use
·It can be heated to 50 ℃ or cooled to - 70 ℃
·Automatic detection, automatic printing of results, good repeatability
·Automatic tilt during detection, fully in line with the standard
·High performance compressor refrigeration, long service life
·The test mode is optional, which can be fast or normal
·With fault diagnosis and other functions, it can prompt operation
·Refrigeration speed and test standard can be prepared according to customer requires.
| Measuring range | 35 ℃～ - 70 ℃ |
| Condensation point range | light oil within 5 ℃~- 70 ℃ |
| Measurement accuracy | ± 1 ℃ |
| Resolution | 0.1 ℃ |
| Display mode | color LCD touch screen Chinese display |
| Temperature control mode | PID regulation |
| Refrigeration system | two-stage refrigeration |
| Number of test holes | 1 hole |
| Relative humidity | ≤ 80% |
| Ambient temperature | 5 ℃～ 40 ℃ |
| Power supply voltage | AC 220V ± 10% 50Hz ± 10% |
| Power consumption | ≤ 600W |
| Overall dimension | 500 mm × 490 mm × 660mm |
| Instrument weight | 55kg |
