Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | Dongguan,Guangdong |
| Brand Name: | SKYLINE |
| Certification: | calibration certificate |
| Model Number: | SL-OA27 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export Packaging |
| Delivery Time: | 5-8working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200sets/per month |
| Adopted Method: | Petroleum And Petroleum Products And Additives Determination Of Mechanical Impurities (GB/T 511-2010) | Display: | 7-inch Liquid Crystal Display (LCD), Resolution 800 ×480 |
|---|---|---|---|
| Temperature Control Range: | Room Temperature~100 ℃ | Temperature Control Accuracy: | ± 1 ℃ |
| Resolution: | 0.1 ℃ | Printer: | 58 Mm Wide Micro Thermal Printer |
| Rated Power: | 800 W | Overall Dimension: | 510 × Three Hundred And Thirty × 320 (unit Is Mm, Excluding Foot Pad) |
| Weight: | 17 Kg | ||
| Highlight: | oil analysis lab equipment,oil analysis equipment |
||

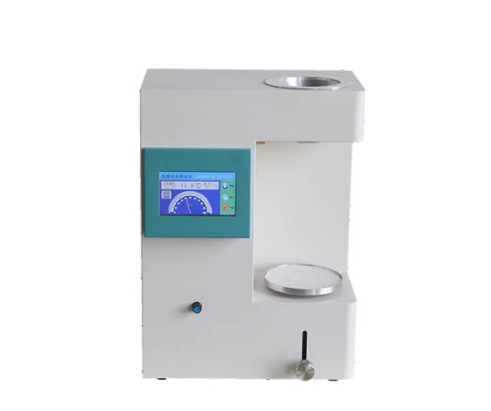

The mechanical impurity tester is designed and manufactured in accordance with GB/T 511-2010 Determination of Mechanical Impurities in Petroleum and Petroleum Products and Additives. It is applicable to determine the content of mechanical impurities in various hydrocarbons, heavy oils, lubricating oils and additives in petroleum products. It can be widely used in electric power, petroleum, chemical, commodity inspection and scientific research departments.
Built in oil-free maintenance free vacuum pump, dual solvent oil preheating system, one instrument host to complete all functions, without external vacuum pump and water bath. Four way independent temperature control, two way independent suction filtration, energy conservation and environmental protection.
1. 7-inch TFT true color touch screen, resolution 800 × 480, human-computer interaction is beautiful and easy to use.
2. It adopts 32-bit microprocessor as the main control core and a new generation of intelligent operating system.
3. The built-in oil-free maintenance free vacuum pump is used, and the program controls the two-way suction filtration.
4. 4-way independent PID temperature control to precisely control the preheating temperature of solvent oil and the temperature of insulation funnel.
5. Built in formula, automatically calculate test results, and save and print data.
6. It can store 50 groups of test data and print the results at any time.
7. High precision perpetual calendar clock with accurate travel time.
| Adopted method | Petroleum and Petroleum Products and Additives Determination of Mechanical Impurities (GB/T 511-2010) |
| Display | 7-inch liquid crystal display (LCD), resolution 800 ×480 |
| Temperature control range | room temperature~100 ℃ |
| Temperature control accuracy | ± 1 ℃ |
| Resolution | 0.1 ℃ |
| Printer | 58 mm wide micro thermal printer |
| Rated power | 800 W |
| Overall dimension | 510 × three hundred and thirty × 320 (unit is mm, excluding foot pad) |
| Weight | 17 kg |
1. Ambient temperature: 5 ℃～ 40 ℃
2. Relative humidity:<80%
3. Input power supply: AC220V ± 10V 50Hz
