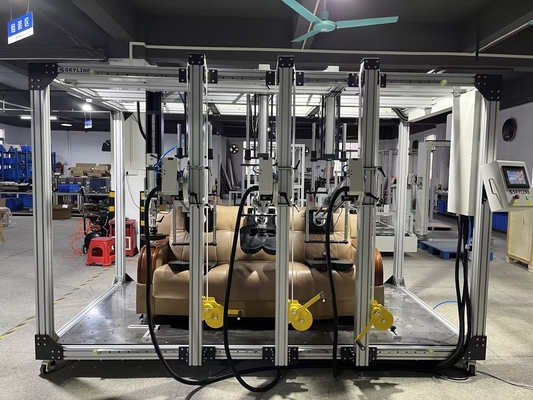

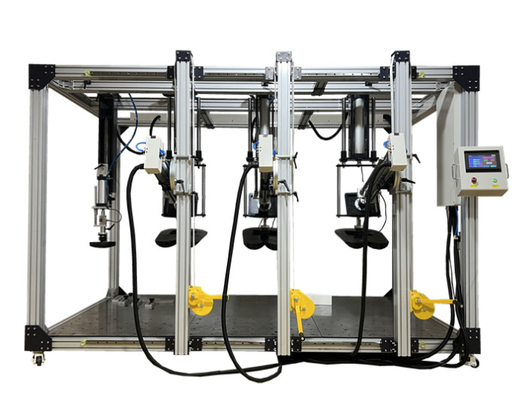

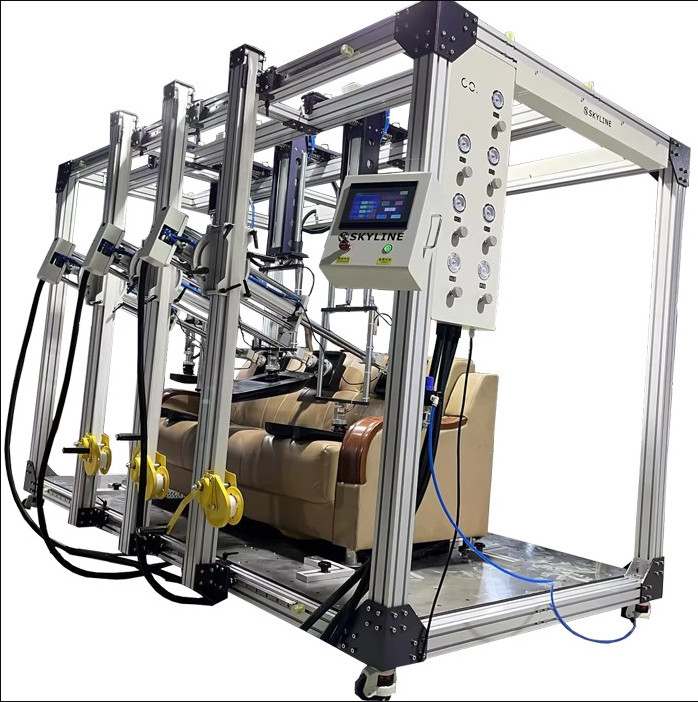

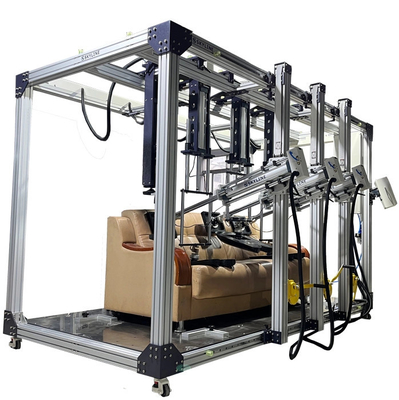

EN 4875/BIFMA X5.4/EN 1728 Three Seat Sofa Durability Tester Sofa Fatigue Test Machine

Product Description:

This tester simulates the normal conditions of usage to determine the sofa’s endurance under a long-term repeatability loading. The principle is to simulate normal functional use to determine the strength of the three-sofa structure by applying to seating and backrest with loads. Using a certain shape and load modules, with specific form, frequency, respectively, repeating load seating, backrest and armrest,and these three tests can work together or independently, also the test position is adjustable.

Test Standard

GBT 10357.3, BIFMA X5.4, EN 1728, EN12520, EN 4875...

Features:

• Product Name: Furniture Testing Equipment
• Cyclic And Holding Time: 0～99.9S
• Test Cycles: 1-999999 Times (arbitrary Setting)
• Test Modules:
  • 3 Modules for Seating
  • 3 Modules for Back
  • 1 Module for Arm
• Max.test Sample: Customize According To Customer Requirements
• Standard Testing Force:
  • Seat Load: 750 N
  • Backrest Load: 400N
  • Arm: 300N

Furniture Load Capacity Testing Tools, Furniture Endurance Testing Instruments, Furniture Strength Testing Apparatus

Technical Parameters:

Furniture Performance Testing Tools, Furniture Reliability Evaluation Devices, Furniture Quality Testing Equipment

Support and Services:

Our Furniture Testing Equipment product comes with comprehensive technical support and services to ensure that your testing needs are met. Our team of experts is available to provide guidance and assistance in setting up, using, and maintaining your equipment. We offer training sessions to help you and your staff get the most out of your equipment and ensure accurate and reliable results. In addition, we provide repair and maintenance services to keep your equipment in top condition and minimize downtime. Our goal is to provide you with the support you need to optimize your testing processes and ensure the quality and safety of your furniture products.

Packing and Shipping:

Product Packaging:

• The furniture testing equipment will be securely packaged in a sturdy cardboard box.
• The box will be sealed with strong packing tape to prevent any damage during shipping.
• Inside the box, the equipment will be wrapped in bubble wrap and secured with packing peanuts to prevent any movement or jostling during shipping.

Shipping:

• The furniture testing equipment will be shipped via a reliable and reputable shipping carrier.
• Customers will receive a tracking number once the equipment has been shipped.
• The estimated delivery time will depend on the customer's location and the shipping carrier's delivery schedule.
• Customers are responsible for any customs fees or duties that may be incurred during shipping.

Principle of Operation

Seat surface and back fatigue test:

The test shall be carried out at the following locations:

(1) Seats on single-seat items;

(2) Simultaneously in two positions of the two-seat item;

(3) For a project with three or more seats, in the case of the most unfavorable combination, proceed on two adjacent seats at the same time. Maximum force of seat surface: 1300N, maximum force of seat back: 450N.

Seat front static load test:

Use the loading pad to apply the specified force at the center line of the sofa from the front edge of the structure 100mm inward. For multi-seat sofas, the seat front static load test should be performed at the same time. The specified weight load should be placed in the loading position.

Feature

(1) Hardware features

1. The force-applying device adopts roller-guided movement, and the instrument runs smoothly;

2. The cylinder is equipped with a noise reduction device, so that the test data can reduce the sound when the instrument is operated on the basis of ensuring the accuracy;

3. The cylinder is provided with a stroke limit to fix the stroke of the cylinder rising and falling;

4. The base of this product is made of high-quality carbon steel plate combined with high-strength aluminum alloy profiles, which does not need to be drilled and fixed to the ground, which fully ensures the stability of the instrument during operation;

5. Equipment short-circuit protection to avoid excessive short-circuit current causing electrical equipment to overheat or be damaged by electric power.

(2) Features of the software

1. The control method adopts PLC programmable controller, which can effectively avoid the interference of circuit boards, servo drives, etc. on the test data. The language can be English, Chinese, and the operation is intuitive and convenient. It can complete test parameter setting, working state control, and data acquisition. and result display;

2. The instrument has power-off protection, the current test data is instantly saved when the power is off, and the last test data can be viewed or the test can be continued when the power is turned on next time;

3. The number of experiments can be arbitrarily set from 1 to 999,999 times. After reaching the set number of times, it will automatically shut down. After the test is completed or the sample is damaged, it will automatically and intelligently alarm.

1. Seat Static Load Test

2. Back Static Load Test

3. Arm Downwards Static Load Test

4. Seat Fatigue Test

5. Back Fatigue Test

FAQ:

Q: What is the brand name of the Furniture Testing Equipment?

A: The brand name of the Furniture Testing Equipment is SKYLINE.

Q: What is the model number of the Furniture Testing Equipment?

A: The model number of the Furniture Testing Equipment is SL-T12.

Q: Is the Furniture Testing Equipment certified?

A: Yes, the Furniture Testing Equipment comes with a calibration certificate.

Q: Where is the Furniture Testing Equipment manufactured?

A: The Furniture Testing Equipment is manufactured in China.

Q: What are the payment terms for purchasing the Furniture Testing Equipment?

A: The payment terms for purchasing the Furniture Testing Equipment are T/T, Western Union, and MoneyGram.

Q: What is the minimum order quantity for the Furniture Testing Equipment?

A: The minimum order quantity for the Furniture Testing Equipment is 1 unit.

Q: What is the supply ability of the Furniture Testing Equipment?

A: The supply ability of the Furniture Testing Equipment is 1 unit.

Q: What is the delivery time for the Furniture Testing Equipment?

A: The delivery time for the Furniture Testing Equipment is 35 work days.

Q: What is the packaging detail for the Furniture Testing Equipment?

A: The Furniture Testing Equipment is packaged in a plywood case.

Q: Is the price of the Furniture Testing Equipment negotiable?

A: Yes, the price of the Furniture Testing Equipment is negotiable.
