Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | ES3001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1 unit/Month |
| Power: | 8.4V Lithium Battery (built-in) | Interference Voltage: | <20V (should Be Avoided) |
|---|---|---|---|
| Interference Current: | <2A (should Be Avoided) | Test Frequency: | 128Hz |
| Short Circuit Test Current: | > 20mA (Sine Wave) | Electrode Spacing Range: | AC 28V Max |
| Highlight: | Accurate Measurements Soil Resistivity Tester,ES3001 Soil Resistivity Tester,Soil Resistivity Tester ES3001 |
||
Product Information

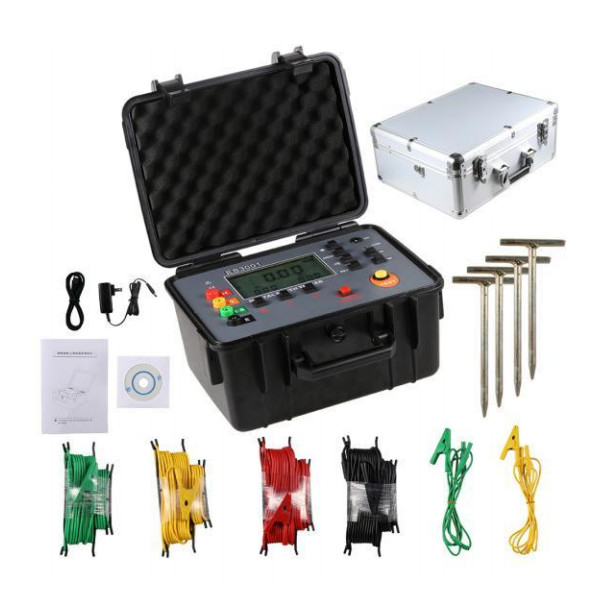

Soil resistivity tester also known as grounding resistance-soil resistivity tester precision grounding
resistance tester, etc. is a common instrument for inspection and measurement of grounding
resistance commonly used instruments, the use of a large LCD grey and white screen backlit
display and microprocessor technology to meet the two, three, four-wire test resistance and Shi soil
resistivity requirements. Applicable to telecommunications, electric power, meteorology, engine
room, oil field power distribution lines, tower transmission lines, petrol stations, factories, grounding
network lightning rods and so on. Instrument testing precision, fast, simple, stable and reliable
characteristics.
Technical Parameter
| Function | Two three four-wire measure grounding resistance, soil resistivity;Ground voltage, AC voltage measurement |
| Ambient temperature and humidity | 23℃±5℃,below 75%rh |
| Power | 8.4V lithium battery (built-in) |
| Interference voltage | <20V (should be avoided) |
| Interference current | <2A (should be avoided) |
| Measure R electrode spacing | a＞5d |
| Measured electrode spacing | a＞20h |
| Auxiliary ground resistance | Reference condition <100Ω, working condition <5kΩ |
| Range | Grounding resistance: 0.00Ω～30.00kΩ Soil resistivity: 0.00Ωm～9999kΩm Grounding voltage: 0.00V～100.0V |
| measurement mode | Precise four-wire, three-wire measurement, simple two-wire measurement |
| Measurement methods |
Grounding resistance: rated current change pole method Soil resistivity: four-pole method Ground Voltage: Average Rectification(between S-ES interface) |
| Test frequency | 128Hz |
| Short circuit test current | > 20mA (Sine Wave) |
| Open circuit test voltage | AC 28V max |
| Electrode spacing range | Can be set 1m ～ 100m |
| Change gear | fully automatic shifting 0.00Ω ～ 30.00kΩ;fully automatic shifting 0.00Ωm～9000kΩm |
| Backlight | Controllable gray screen backlight, suitable for use in dim places |
| Display mode | 4-bit large LCD display, gray screen backlight |
| Measurement instructions | LED flashing indicator during measurement |
| LCD size | 111mm×68mm |
| LCD display field | 108mm×65mm |
| Instrument size | 277.2mm×227.5mm×153mm |
| Standard test line length | 4 strips:red 15m,black 15m, yellow 10m,green 10m each one |
| Simple test line | 2strips:yellow 1.6m,green 1.6m each one |
| Auxiliary Grounding rod | 4PCS:φ10mm×200mm |
| Measure time | Ground voltage:about 3 times/sec grounding resistance,soil resistivity: about 7 seconds/time |
| Line voltage | Measurement below AC100V (ground voltage measurement function cannot be used to measure commercial power) |
| USB interface | With USB interface, software monitoring, storage data can be uploaded to the computer, save and print |
| Communication Line | One USB communication line, 1.5m long |
| Data storage | 500 groups, "MEM" storage indicates, flashing "FULL" symbol indicates that the memory is full |
| Data review | Data review function: "MR" symbol display |
| Overflow display | Over-range overflow function: "OL" symbol display |
| Interference test | Automatic identification of interference signals, "NOISE" symbol indication when the interference voltage is higher than 5V |
| Auxiliary grounding test | With auxiliary ground resistance test function, 0.00KΩ ~ 30kΩ (Rh max = 3kΩ +100R <50kΩ; Rs max = 3kΩ +100R <50kΩ) |
| Alarm function | Alarm when the measured value exceeds the alarm setting value |
| Battery voltage | Real-time display of battery power, reminding timely charging when battery voltage is low |
| Automatic Shutdown | “APO” Indicates, automatic Shutdown After 15 Minutes |
| Power consumption | Standby: 40mA Max(Backlight off) Turn on backlight: about 43mA measuring:75mA Max(Backlight off) |
| Weight | Instrument: 2450g(including battery) Test lines:1300g Auxiliary grounding rod: 850g(4PCS) |
| Working temperature and humidity | -10℃～40℃；below 80%rh |
| Storage temperature and humidity | -20℃～60℃；below 70%rh |
| Overload protection | Grounding resistance:AC 280V/3 seconds between H-E and S-ES ports |
| Insulation resistance | >20MΩ(500V between circuit and housing) |
| Pressure resistance | AC 3700V/rms(between circuit and housing) |
| Electromagnetic properties | IEC61326(EMC) |
| Suitable for safety regulations |
IEC61010-1(CAT Ⅲ 300V,CAT IV 150V,pollution level 2)； IEC61010-031； IEC61557-1(grounding resistance)； IEC61557-5(soil resistivity)； JJG 366-2004. |
Contact Person: Ms. Ivy Xie
Tel: 86-13751491529
Fax: 86-769-38818154
