| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-T07I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1 unit/Month |
| Capacity: | 2kN Sensor*1 | Servo Motor: | 0.4kW*1、1.5kW*1 |
|---|---|---|---|
| Cylinder Stroke: | Stroke 500mm, Max Thrust 1.39kN | Test Speed: | 10～20 Times/min |
| Power Supply: | 220V,50HZ | Air Source: | ≥6kg/cm² |
| Highlight: | Mattress Integrated Testing Machine,Multifunction Mattress Roller tester,Integrated Mattress Roller tester |
||

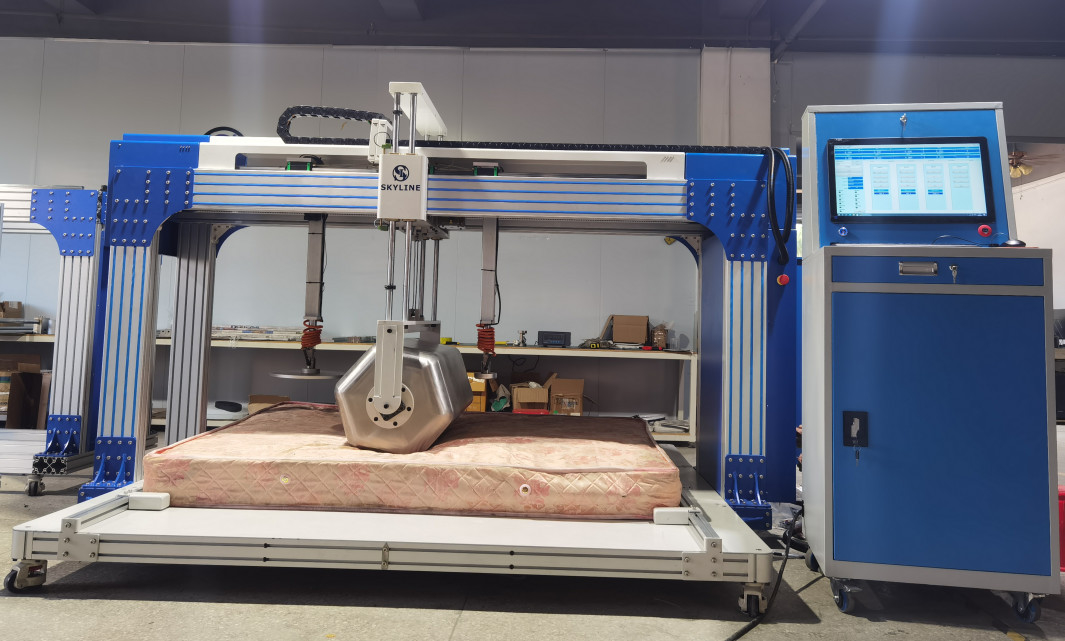

Product Information of Mattress Testing Machine
To determine the durability and hardness of any type of mattress and boxspring unit (regardless of the materials) by simulating long term use condition.
The mattress durability tester is used for Boxspring Mattresses, Innerspring Mattresses, Polyurethane Mattresses
Record the curve of loading process and evaluate the value of hardness according to relevant test data.
It is made of aluminum, generous and beautiful.
Control system adopts special high precision and high intelligence ARAM controller.
The software interface is clear and easy to be operated.

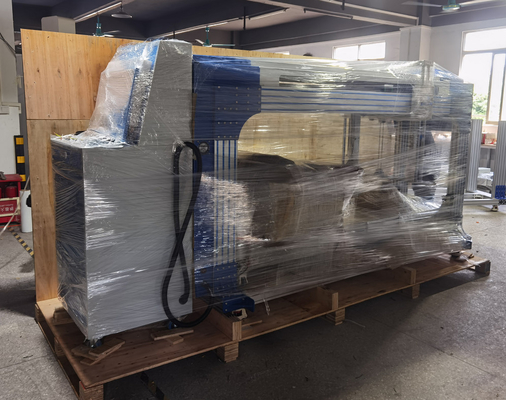

Product Information of Packing Detail
Estimated Packaging Dimension: 3510*1220*1900mm
Estimated Gross Weight:1100kg
HS Code: 9024800000
Testing Standards of Mattress Testing Machine
ASTM F1566(109kg,ASTM Hexagonal Barrel:100000 cycles)
EN 1957(140kg,EN Round Barrel:100 pre-roll and 29900 cycles)
EN 1725(Optional: 1000kg,Mattress Edge Testing)
| Test load capacity | 1000N |
| Test Cycle | 5000 |
| Driving Method | Air Cylinder |
| Hold time | Maintain for (3+/-1)s |
Feature
1. The whole machine frame made of high quality aluminum, with smart and elegant shape
2. Delta brand PLC and Servo Motors
3. Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in DELTA servo motor
4. Machine configuration alarm device, indicating the safe operation
5. Electric lifts the Roller, easy to operate.
6. PC Control and touch screen
7. Automatically stops after preset cycles completed
8. over moving limit protection
9. Stainless steel roller reduces wear and increase of service life.
