Furniture Testing Machine ASTM F 1566-99 , Cornell Mattress Durability Tester

Furniture Testing Machine ASTM F 1566-99 , Cornell Mattress Durability Tester

Furniture Testing Machine ASTM F 1566-99 , Cornell Mattress Durability Tester
Furniture Testing Machine ASTM F 1566-99 , Cornell Mattress Durability Tester
Furniture Testing Machine ASTM F 1566-99 , Cornell Mattress Durability Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-T06
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Cornell Mattress Durability Tester Seat Surface Loading Force: 750 Newton
Loading Force On The Back: 400 Newton Brand: SKYLINE
Test Cycle: 25000 Times To 200000 Times Warranty: 18 Months
Highlight:

durability testing machine

,

spring testing equipment

ASTM F 1566-99 Furniture Testing Equipment Cornell Mattress Durability Tester



Product information of Mattress Testing Machine

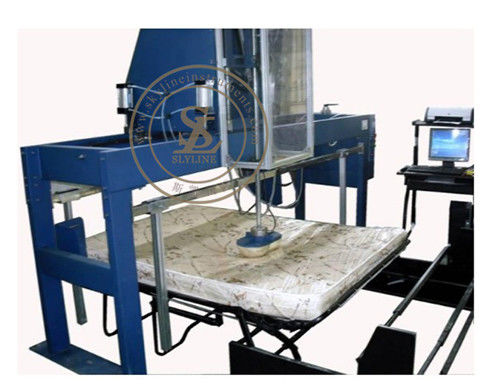

Cornell Mattress Durability Tester
Testing for mattress on the long-term repeatability of the test load capacity, and the mattress compression deformation.
With sofa Cornell fatigue life test method, motor driven eccentric wheel, adjust the height of the impact of the impact block, then 120-160 times / min speed impact testing of mattresses, the impact of counter measures the number of times after the set automatically shutdown.
Circular pads made in accordance with ASTM F 1566-99
Computer, print force value, displacement, time table.


Technical parameters of Mattress Testing Machine

 Computer system output  Max 150kgf
 Display Accuracy  0.001kgf
 Display accuracy  Indication of + / -0.1%
 Deformation precision  0.001mm
 The impact of block speed  120-160 times adjustable
 Impact height  0-300mm adjustable
 Counter measures and set the range  0-99999 times
 The impact of motor power  2KW DC
 Computer system Motor  1/4HP Panasonic servo motor
 Impact blocks and blocks meet  ASTM F 1566-99



Testing Standards of Mattress Testing Machine
ASTM F 1566-99



Furniture Testing Machine ASTM F 1566-99 , Cornell Mattress Durability Tester 0
