| Place of Origin: | China |
| Brand Name: | Skyline |
| Certification: | ISO |
| Model Number: | Lab Testing Equipment |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | polywood case |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 pcs per month |
| Machine Weight: | 300kg | Machine Size: | 120×530×1800mm |
|---|---|---|---|
| Maxium Load: | 100kg,200kg,500kg,1000kg,2000kg | Test Width: | 400mm |
| Stretch Space: | 800mm | Test Speed Range: | 50-300 Mm/min |
| Power Supply: | 220V,50HZ, | Power: | 0.75KW |
| Highlight: | Double Column Tensile Tester,Double Column Tensile Testing Machine,Tensile Testing Machine 300mm/min |
||
It is mainly applicable to the testing of metal and non-metallic materials, such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, safety belt, leather belt composite material, plastic profile, waterproof coiled material, steel pipe, copper material, profile, spring steel, bearing steel, stainless steel (and other high hardness steel), casting, steel plate, steel strip, non-ferrous metal wire stretching, compression, bending, shearing, stripping, tearing Two point extension (additional extensometer is required) and other tests

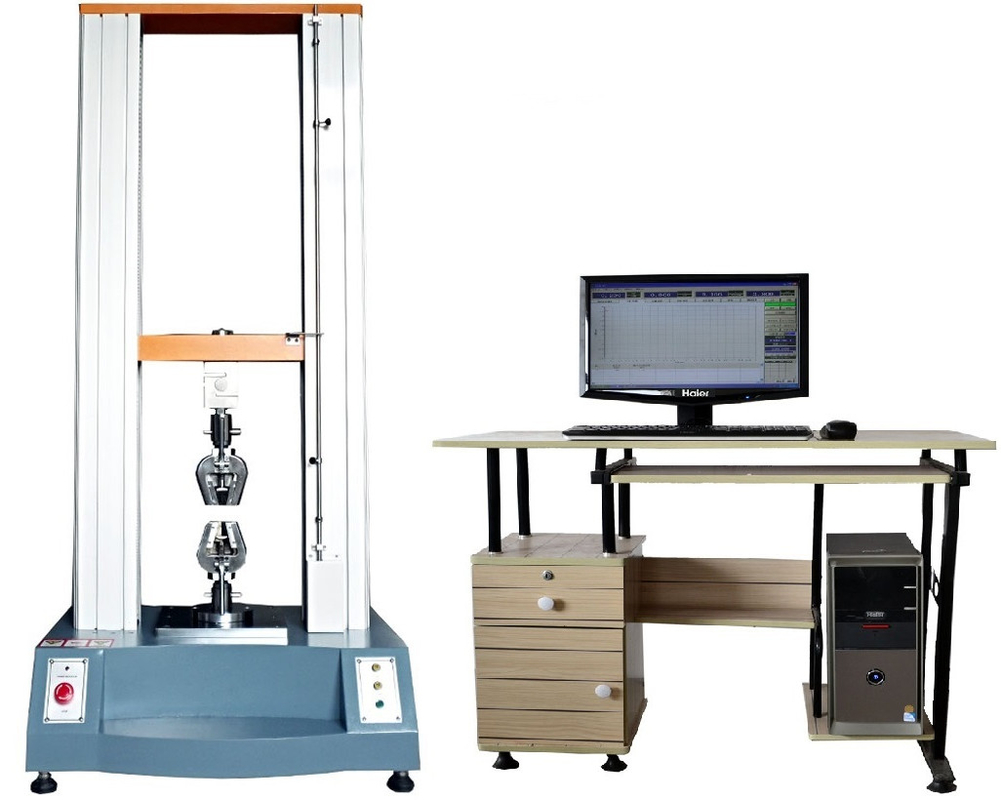

This machine adopts mechatronics design and is mainly composed of force sensor, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer. It has wide and accurate loading speed and force measuring range, and has high accuracy and sensitivity for the measurement and control of load and displacement. It can also carry out automatic control tests of constant speed loading and constant speed displacement. Floor type models, modeling and painting have fully considered the relevant principles of modern industrial design and ergonomics.
The imported photoelectric encoder is used for displacement measurement. The controller adopts embedded monolithic microcomputer structure, with built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It can automatically calculate the stress, elongation (extensometer is required), tensile strength and elastic modulus, and automatically count the results; Automatically record the force value or elongation at the maximum point, breaking point and specified point; The computer is used to dynamically display the test process and test curve, and to process the data. After the test, the curve can be magnified through the graphic processing module for data re analysis and editing, and the report can be printed. The product performance has reached the international advanced level.
| Maxium Load | 100kg,200kg,500kg,1000kg,2000kg can be selected |
| Accuracy grade | Grade 0.5 |
| Effective force measuring range | 0.4％～100％(Grade 0.5) |
| Force measuring accuracy | Within ± 0.5% of the indicated value |
| Resolution of testing machine | The maximum load is 1/ 200000 yards, and the internal and external are not graded, and the overall resolution is unchanged |
| Load cell |
Basic configuration: tension and compression sensors (maximum load) Extended configuration: multiple sensors can be added |
| Effective test width | 400mm |
| Stretch space effectively | 800mm |
| Test speed range | 50～300mm/min |
| Displacement measurement accuracy | Within ± 0.5% of the indicated value |
| Deformation measurement accuracy | Within ± 0.5% of the indicated value (large deformation or small deformation can be selected according to customer requirements) |
| Test bench safety device | Up and down stroke limiting device |
| Lifting device of test bench | Fast/slow speed automatic control, inching |
| Test bench return function | Manual or automatic selection, automatic or manual return to the initial test position after the test |
| Overload protection | The machine is automatically protected when the maximum load exceeds 10% |
| Fixture configuration | One set of stretching clamp |
| Expandable configuration | Fixtures or specially designed fixtures and accessories can be selected according to the test standards or test samples provided by the customer, and the cost will be calculated separately. |
| Size | 120×530×1800mm(L*W*H) |
| Motor type | Variable frequency motor |
| Power supply | 220V,50HZ, |
| Power | 0．75KW |
| Weight | 300 Kg |
